Item Information

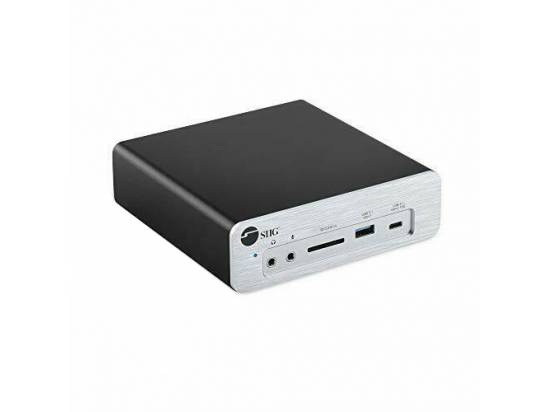

Advanced docking station transforms a single Thunderbolt 3 port into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 Gen2 Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 ports, one Gigabit Ethernet port, an SD memory card reader, and a stereo audio/microphone connectivity with PD 3.0 charging up to 87W. Adds 2 storage drives via dual M Key NVME SSD capabilities
Features
- Advanced Docking Station - transforms a single Thunderbolt 3 into one Thunderbolt 3 port, one DisplayPort 1.4 port, two USB 3.1 10Gbps Type A/C ports, two USB 3.1 Gen1 Type-A with BC 1.2 port, one Gigabit Ethernet port, SD (UHS-II) memory card reader and stereo audio/Microphone connectivity with PD charging up to 87 watts
- Experience High Resolution Video - Allow you to connect two 4K@60Hz Ultra HD displays simultaneously through Thunderbolt 3 & DP port. A single 8K@30Hz display is supported through the source Thunderbolt 3 and DP 1.4 port
- Dual PCIe Gen 3 NVMe M.2 - Holds two M Key 2280 form factor SSDs, adds 2 drives to your computer, increase storage capacity and enhance data transfer speed up to 1500Mbps rate for each installed SSD. Compatible with M Key PCIe NVMe/AHCI M.2 SSDs only (SSD not included)
- USB 3.1 - Provides 2 USB-A 3.1 Gen1 with BC 1.2 (5V/2.4A) ports up to 5Gbps, one USB-A 3.1 Gen2 BC 1.2 (5V/2.4) ports up to 10Gbps, one USB-C 3.1 Gen2 port (5V/3A) up to 10Gbps to enhance your computer's performance capabilities
- SD Memory Card Reader - SD (UHS-II) compatible, supports data transfer up to 270Mbps, and maximum capacity of 2TB
- Wired Gigabit Ethernet - Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Audio Jack - Supports two 3.5mm audio jack for stereo audio and microphone connection
- High Power - Included 150W power adapter provides sufficient power for your connected peripherals, plus PD charging up to 87W to charge/power your laptop
- Certifications: Intel Thunderbolt 3, RoHs, TAA, FCC, CE
Included
- Thunderbolt 3 DP 1.4 Docking Station with Dual M.2 NVMe SSD & 87W Power Delivery
- Power Adapter 20V/7.5A
- Thunderbolt 3 Cable (50cm)
- User Manual
New items ship in their original manufacturer's packaging. These items are in excellent condition with no blemishes on their housings.
UPC: 00662774044071
SIIG Thunderbolt 3 Technical Specs
| Computer Interface | USB-C |
|---|
| VGA | 0 |
|---|
| DVI | 0 |
|---|
| HDMI | 0 |
|---|
| DisplayPort | 1 |
|---|
| Ethernet | 1 |
|---|
| USB 2.0 | 0 |
|---|
| USB 3.0 | 0 |
|---|
| USB 3.1 | 4 |
|---|
| USB 3.2 | 0 |
|---|
| USB 4.0 | 0 |
|---|
| USB-C | 0 |
|---|
| Thunderbolt 3 | 1 |
|---|
| SD Card Reader | Yes |
|---|
| MicroSD Card Reader | No |
|---|
| 3.5mm Audio | Yes |
|---|
| Power Delivery | 87w |
|---|
