Item Information
Fulfill all your Power Measurement needs with a single, inexpensive unit. With the variety of sensors available,
the Model 500-EX can handle Cellular, PCS, AMPS, CDMA, GSM, TDMA, ISM, UMTS, 3G Wireless, WLL, Paging, Conventional/Trunking Radio, Aviation, Military, and Analog or Digital Television Broadcast. Model 5000-EX is also compatible with pulse modulation systems, such as radar and avionics applications (TACAN, DME), where peak power measurements are required.
Features
- Back-lit liquid crystal technology, 2.25" x 3.0" (57 x 76 mm). Three-way display consisting of
major and minor digital display elements, analog bar graph element, annunciators, battery indicator and speed-key legends. All display elements visible simultaneously.
- Major Digital Display: 5 digits, 5/16" (7.94 mm) high. Displays Forward Power, VSWR, dBm, Return Loss, and Match Efficiency.
- Minor Digital Display: 5 digits, 1/4" (6.35 mm) high. Displays Reflected Power, VSWR, dBm, Return Loss, and Match Efficiency.
- Analog Bar Graph: 20 segment, horizontal orientation. Tracks major digital display.
- Measurement Mode: TRUE AVERAGE POWER, for measurement of conventional or digitally-modulated RF.
- Speed Keys: SCALE, FWD UNITS, RFL UNITS. Set full scale power range and units for major and minor displays.
- Display Annunciators: MATCH EFF%, VSWR, RETURN LOSS, dBm, µW, mW, W, kW located below major and minor displays.
- Display also indicates Overrange, and Low Battery.
- Sensor Interface: 9-pin D-shell RS-232 serial connector. Sensor is powered from meter. Sensor is compatible
- with Bird VSWR Alarm products and Broadcast Power Monitor (BPM) product family.
- PC Interface: 9-pin RS-232 serial port for connection to a PC.

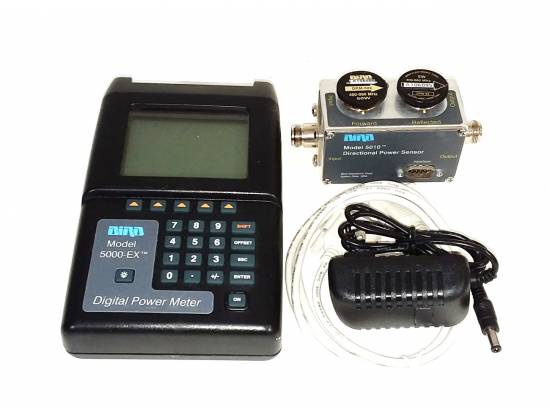

Included
- Power Meter
- Power Adapter
- Communications Cable
Grade A Refurbished
| Functionality |
 |
|---|
| Cosmetics |
|
|---|
All refurbished items are restored to full functionality, and their grades reflect only cosmetic condition. Lower-grade products may have more visible blemishes but are rigorously tested and cleaned to ensure identical performance and warranty coverage.
No Hassle Return Policy & PC Certified Guarantee
Rest assured, if you order the wrong items, don't like the model, or just don't need it anymore we accept returns with NO restocking fees. Whether you want something different or just a credit, we have you covered! This policy goes hand in hand with our company culture of delivering outstanding customer satisfaction.
If you need assistance finding a different product our awesome staff is ready to help. Contact us for expert support.
- Item(s) must be returned within 30 days from invoice date.
- Item(s) must be received in original condition preferably in the same packing materials.
- Item(s) should be securely packed for safe return.
- The purchaser is responsible for all shipping costs and insurance.
Shipping
- Products usually ship within two business days after payment. If you have a rush order, or need an item delivered on Saturday please call to request faster shipping.
- All products are shipped and delivered on business days.
- Fixed or free shipping offer does not apply to items shipped on pallets, please call for rates on those items. Free shipping offers only apply to the continental US.
Warranty Policy
All products purchased from us are covered by a 1-year warranty from the date of purchase, covering manufacturing defects and functional failures under normal business use.
Please note that batteries are an exception to this policy. Batteries are covered by a 90-day warranty due to their consumable nature.
This warranty does not cover damage caused by misuse, unauthorized modifications, or improper handling.
For any warranty claims, please contact our support team with your purchase details and a description of the issue.
