Item Information
The LB4M is a modular Gigabit Ethernet backbone switch designed for adaptability and scalability. The Switch can utilize up to 48 Gigabit Ethernet ports to function as a central distribution hub for other switches, switch groups, or routers. The one built-in 1000/100/10 Ethernet ports for out of service. The LB4M also provides SFP+ interfaces for 10-Giga port on the daughter board. The number of 10-Giga ports depend on selecting daughter board.
Features
- Supports 48 10/100/1000BASE-T RJ45 Ethernet ports
- 1 built-in 1000/100/10 Ethernet ports for out of service.
- Supports 802.1D STP, 802.1S MSTP, and 802.1w Rapid Spanning Tree for redundant back up bridge paths
- Supports 802.1Q VLAN, Protocol-based VLAN, Subnet-based VLAN, MAC-based VLAN, Protected Port, Double VLAN, Voice VLAN, GVRP, GMRP, IGMP snooping, 802.1p Priority Queues, Port Channel, port mirroring
- Support LLDP, VTP, Port Security
- Multi-layer Access Control (based on MAC address, IP address, VLAN, Protocol, 802.1p, DSCP)
- Quality of Service (QoS) customized control
- 802.1x (port-based) access control and RADIUS Client support
- Administrator-definable port security
- Per-port bandwidth control
- IEEE 802.3z and IEEE 802.3x compliant Flow Control for all Gigabit ports
- SNMP v.1, v.2, v.3 network management, RMON support
- Supports Web-based management
- CLI management support
- DHCP Client and Relay support
- DNS Client and Relay support
- Fully configurable either in-band or out-of-band control via RS-232 console serial connection
- Telnet remote control console
- TraceRoute support
- Traffic Segmentation
- TFTP upgrade
- SysLog support
- Simple Network Time Protocol
- Web GUI Traffic Monitoring
- SSH Secure Shell version 1 and 2 support
- SSL Secure HTTP TLS Version 1 and SSL version 3 support
- ARP support
- IP Routing support
- OSPF v2 and v3 support
- RIP v1 and v2 support
- Router Discovery Protocol support
- VLAN routing support
- Virtual Router Redundancy Protocol (VRRP) support
- IP Multicast support
- Protocol Independent Multicast - Dense Mode (PIM-DM) support
- Protocol Independent Multicast - Sparse Mode (PIM-SM) support
- IGMP v1, v2, and v3 support
- DVMRP support
- IPV6 function
- Supports DHCPv6 protocol, OSPFv3 protocol, Tnneling, loopback
- Provides to configure IPv6 routing interface, routing preference
Included

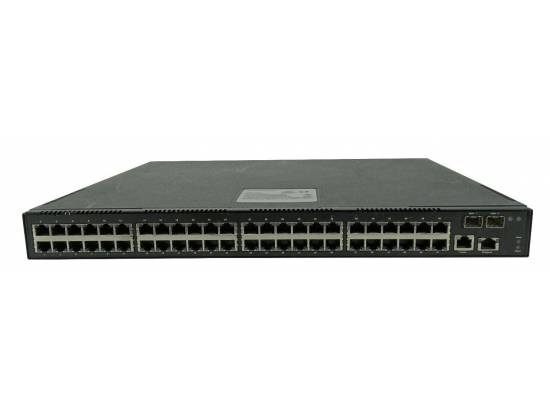

- Quanta LB4M 2x 10Gbps Uplink 48-Port Gigabit Ethernet Managed Switch
- Power Cord
Condition
- These items have been refurbished
- Refurbished items have been cleaned, tested, and confirmed to be fully functional
- These items may have minor blemishes on their housings which cannot be removed during the refurbishing process
UPC: 00610602037795
LB4M 2x 10Gbps Uplink Technical Specs
| Manufacturer | Quanta |
|---|
| Model | LB4M |
|---|
| Number of Ports | 48 |
|---|
| Port Type | RJ-45 |
|---|
| Port Speed | Gigabit Ethernet |
|---|
| Power Over Ethernet (PoE) | Yes |
|---|
| Rackmountable | Yes |
|---|
| Dimensions (WxDxH) | 17" x 13" x 1" |
|---|
