Item Information
The Yealink MVC640 HD Video Conference Room System delivers a native Microsoft Teams Rooms (MTR) and Skype for Business (SRS) meeting experience designed for medium spaces with 5 to 13 participants. Yealink MVC640 Room System is a complete solution with up to 4K/60FPS PTZ camera, 8-inch Color LCD control console, Mini i5 PC w/Windows 10, wireless microphones, video peripherals, remote control and cables. Unique to the MVC640-Wireless-CPW90 package, is the included CPW90 DECT wireless microphone array increasing the microphone pickup range over the standard MVC640 package plus adds the convenience of wireless deployment.
Improvements over MVC500 II
- Resolution: 4K vs 1080p
- Zoom: 12x optical vs 5x optical
- Flexible camera mounting: Table top, top-of-monitor, wall and ceiling mountable
- Camera Privacy: UVC84 lens points down when not in use - no longer need lens cap
Features
- Native Microsoft Teams Rooms (MTR) and Skype for Business (SRS) pre-installed for fast deployment and easy user adoption
- UVC84 USB PTZ Camera with 12x optical zoom (4K/60FPS) + 3x digital zoom with Auto-framing capability
- Supports up to (2) monitors/displays including projectors via HDMI output
- Yealink MTouch II Console is an 8 inch touchscreen with native Microsoft interface allowing you to easily launch and control meetings. Built-in WiFi for wireless content sharing (WPP20 req). HDMI/USB-C input allows you to quickly share content from your PC or Mac (cable included)
- MTouch II connects to the Mini PC via Ethernet Cable making it easier to install in any size meeting room. CAT5e length up to 131 ft
- Wireless share content with WPP20 Wi-Fi Content Sharing Device.
- CPW90 w/DECT USB dongle wireless microphones (2) provide up to 10ft voice pickup range for each unit
- Supports up to 4 wireless microphone units (2x CPW90 Kits per system)
- Adding the VCM38 Ceiling Array Microphone can cover up to 130 sq ft with 8 built-in microphones also featuring Yealink Noise Proof technology. Up to 8 VCM38 supported per system (optional - sold separately). (Note: VCM38 microphones can not be mixed with other Yealink microphones on the MVC640 system. CPW90 microphones must be removed from use to use the VCM38)
- Includes a powerful 8th Gen i5, 8 GB mini-PC w/Windows 10 IoT Enterprise OS with Teams and SFB App pre-installed
- The included Mini-PC Bracket offers protection to the cables plus gives you the ability to mount the unit on the wall or stick with Velcro behind a TV
- UVC84 Gen 2 includes a USB Type A port, so it can now support CPW90 wireless microphones.
- Interop capability to join Zoom Rooms and Webex meetings. Calendar integration and one-touch join capability

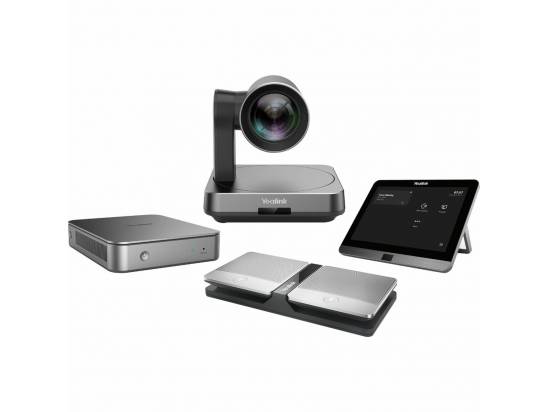

Included
- UVC84 USB PTZ 4K Camera with mounting hardware (Gen 2 w/USB port)
- Mini-PC w/pre-installed Windows 10 and Microsoft App
- MTouch II Console w/25 ft Ethernet cable
- USB-C Cable w/HDMI adapter (for content sharing via MTouch II)
- CPW90 w/DECT USB dongle
- Mspeaker II soundbar
- VCR20 Remote Control
- Cables and other necessary peripherals
New items ship in their original manufacturer's packaging. These items are in excellent condition with no blemishes on their housings.
UPC: 00841885107794
MVC640 Microsoft Teams 4K Technical Specs
| Brand | Yealink |
|---|
| Model | MVC640-C2-511
|
|---|
| Camera Resolution and Frame Rate | 4K at 30FPS 1080P at 60FPS
|
|---|
| Field of View | 80 degrees Pan: 100 degrees Tilt: 40 degrees (90 degrees when off) |
|---|
| Zoom | 12x optical zoom + 3x digital zoom
|
|---|
| Auto Framing | Yes |
|---|
| Microphone | 1x CPW90 Wireless Microphone Kit w/USB dongle (2 microphones). Up to 10 foot pickup range per microphone. |
|---|
| Speaker | Yealink soundbar |
|---|
| Networking | Mini PC's VCH port connects to MTouchII Mini PC's internet port for physical network connection |
|---|
| PoE | MTouch II receive power through Ethernet Cable |
|---|
| USB Port(s) | Mini PC - 4x USB-A 3.0 MTouch II - 1x USB-C UVC84 - 1x USB-B 2.0, 1x USB-A 2.0 |
|---|
| HDMI Port(s) | Mini-PC - 2x HDMI output w/CEC |
|---|
| Additional Information | UVC84 has 3.5mm output to MspeakerII and other powered speakers. CPW90 microphones connect to the included DECT USB dongle |
|---|
